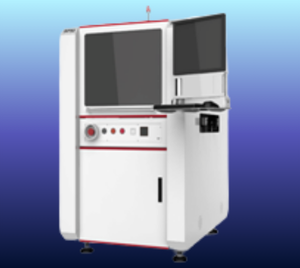

“PACHDA” INLINE JET DISPENSING MACHINE

The PACHDA Inline Jet Dispensing Machine from the PC Series is a cost-effective, reliable, and durable dispensing system designed for multi-standard circuit boards and substrates. With a simple yet robust design and user-friendly software, this system ensures stable and reliable operation, making it suitable for chip packaging, board assembly, SMT red glue applications, medical supplies, and other dispensing needs.

Overview

Equipped with a non-contact injection valve, the PACHDA Inline Jet Dispensing Machine achieves smaller dispensing diameters and supports a wide range of applications. Its adjustable track width allows handling of diverse product sizes while maintaining high cost performance in high-performance conditions. Additionally, the system supports chip body identification for enhanced precision compared to traditional mark point identification.

Features

  • Non-Contact Injection Valve: Enables smaller dispensing diameters and supports varied applications.

  • Enhanced Dispensing Reliability: Improved consistency, productivity, and material utilization

  • Precision Underfill: Achieves minimum overflow width of only 0.2mm (dependent on configuration and adhesive).

  • Smart Chip Body Identification: More accurate than traditional mark point systems for precise dispensing.

  • Intelligent Manufacturing Functions: Includes automatic program calling, foolproofing, data statistics, and more.

  • Adjustable Track Width: Accommodates a wider range of product sizes.

  • User-Friendly Software: Simple operation with stable system performance.

Specifications

  • Type: Inline Jet Dispensing Machine
  • Series: PC Series
  • Dispensing Type: Non-contact injection
  • Minimum Overflow Width: 0.2mm (depending on configuration/glue)
  • Product Compatibility: Chip packages, board assembly, SMT red glue, medical supplies
  • Identification: Chip body identification for precision
  • Functions: Intelligent program call, data logging, production statistics
  • Track Width: Adjustable for different product dimensions
  • Application: High-performance dispensing across multiple industries
