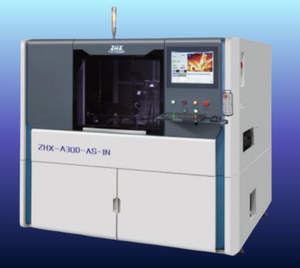

ZHX-A30D - IN Line Axial Insertion Machine
A next-generation axial component insertion solution built for speed, precision, and cost efficiency. With advanced vision alignment, flexible insertion directions, and built-in sequencing capabilities, the ZHX-A30D streamlines your in-line assembly process.
Overview
The ZHX-A30D is a high-speed in-line axial insertion machine featuring a fully computerized English interface for user-friendly operation. Capable of four different insertion directions (0°, 90°, 180°, 270°), the system supports a wide range of layout requirements. It integrates precision ball screw drives with AC servo motors to deliver positioning accuracy below 0.001 mm, while the machine vision system with multi-fiducial alignment ensures precise placement. Its all-in-one structure includes a built-in sequencing model, eliminating the need for adhesive tape during component sequencing, resulting in significant cost reduction. The machine also features an independent jumper feeding mechanism that adjusts the feed length according to actual insertion pitch.
Features
- Computerized interface with full English support
- Four-directional insertion: 0°, 90°, 180°, 270°
- Imported precision ball screw and AC servo motor for ultra-precise motion
- Positioning accuracy < 0.001 mm
- Integrated machine vision system with multi-fiducial alignment
- Front and rear touchscreen controls
- Intelligent fiducial correction function
- USB port for data transmission
- Built-in sequencing system – no adhesive tape required
- Independent jumper feeding mechanism
- High-speed output up to 22,000 CPH
- Optimized for in-line production environments
Specifications
- Model: ZHX-A30D
- Insertion Type: Axial component
- Insertion Directions: 0°, 90°, 180°, 270°
- Accuracy: < 0.001 mm
- Drive Type: AC servo with precision ball screw
- Vision System: Yes, with multi-fiducial support
- Controls: Dual touchscreen (Front & Rear)
- Data Interface: USB port
- Speed: Up to 22,000 components per hour (CPH)
- Sequencing: Built-in model (no adhesive tape required)
- Jumper Feeder: Independent mechanism with pitch-based adjustment
- Production Mode: In-line compatible
