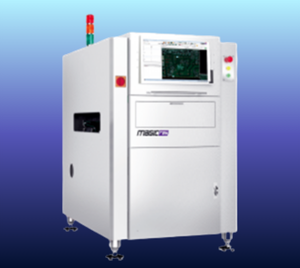

Double side inspection Inline AOI V5300

Simultaneous Top & Bottom Inspection The MagicRay Inline AOI V5300 enables simultaneous inspection of both the top and bottom sides of PCBs in a single machine, eliminating the need for time-consuming PCB flipping. Designed with anti-dust protection and an automatic vacuum cleaning system, it ensures consistent inspection quality and machine longevity.

Overview

The V5300 is engineered for efficiency and versatility, offering powerful inspection algorithms capable of handling odd-shaped components with ease. Its integrated warp compensation solution ensures accuracy even on warped boards, making it ideal for complex PCB inspections.

Features

  • Double Side Inspection: Inspect top and bottom sides of PCB simultaneously.

  • Time Saving: No need for PCB flipping.

  • Anti-Dust Protection: Keeps inspection clean and precise.

  • Automatic Vacuum Cleaning: Maintains optimal system performance.

  • Powerful Algorithms: Easily inspects all kinds of odd-shaped components.

  • Warp Compensation: Ensures accurate inspection on warped boards.

Specifications

  • Inspection: Simultaneous top & bottom side PCB inspection
  • Protection: Anti-dust with automatic vacuum cleaning system
  • Algorithms: Advanced inspection for odd-shaped components
  • Compensation: Integrated warp compensation solution
  • Efficiency: Eliminates PCB flipping, saving time and increasing throughput
  • Let me know if you'd like all product sections combined into a single document, HTML cod

Ready to boost your production with Double side inspection Inline AOI V5300?
