Inline AOI V5000 series

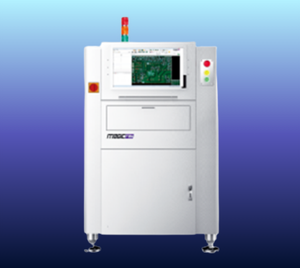

High-Precision Inline Inspection System The MagicRay Inline AOI V5000 Series is designed for SMT PCBA pre-reflow and post-reflow inline inspection. Built on a solid granite platform, it delivers superior precision and machine stability. Equipped with a programmable RGB+W LED lighting source and telocentric lens, the V5000 ensures constant magnification with minimal distortion, enabling highly accurate inspections.
Overview
The V5000 Series is tailored for inline inspection in SMT production lines. Whether for pre-reflow or post-reflow, it maintains precision through its granite platform and advanced optical system. With camera options of 5MP or 12MP, and available in single-lane or dual-lane conveyor configurations, the V5000 fits diverse manufacturing needs.
Features
- SMT Inline Inspection: Suitable for pre-reflow and post-reflow inspection.
- Granite Platform: Enhances precision and stability.
- Programmable RGB+W LED Lighting: Customizable lighting for optimal inspection clarity.
- Telocentric Lens: Provides constant magnification with low distortion.
- Camera Options: 5MP or 12MP high-resolution cameras.
- Conveyor Configurations: Available in single-lane and dual-lane models.
Specifications
- Application: Pre-reflow & post-reflow SMT PCBA inspection
- Platform: Precision granite construction
- Lighting: Programmable RGB+W LED source
- Lens: Telocentric with constant magnification
- Camera Resolution: 5MP / 12MP options
- Conveyor: Single-lane / Dual-lane configurations
