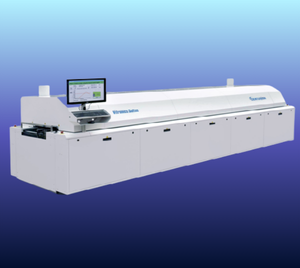

ITW EAE Vitronics Soltec - Centurion Reflow Ovens

The Vitronics Soltec Centurion platform is a cutting-edge evolution in reflow systems, renowned globally for its superior reliability and robust design. It features the industry's best heat transfer system, providing benchmark thermal performance, precise process control, and exceptional value, especially in 24/7 high-throughput PCB assembly environments. With its forced-convection technology and tight closed-loop process control, the Centurion excels at minimizing thermal variations and energy consumption.

Overview

The Centurion Reflow Oven is built for modern SMT production lines requiring precision, consistency, and flexibility. Its design allows running any profile at the lowest set point, reducing energy usage and improving uniformity across PCBs. Multiple models with varying heating and cooling zones cater to specific production needs.

Features

  • Best-in-Class Heat Transfer: Industry-leading thermal performance with energy-efficient operation.

  • Closed-Loop Process Control: Ensures precise and repeatable profiles for high-quality soldering.

  • Robust, Reliable Construction: Engineered for 24/7 operation with minimal downtime.

  • Flexible Zone Configurations: Available in 8, 9, 10, 12, and 15 zone configurations.

  • Environment Options: Configurable for Air or Nitrogen (N2) environments.

  • Optional Features: Wide range of customization options to meet specific production requirements.

Specifications

  • Available Models: 820A, 930A, 1040A, 1240A
  • Number of Heat Zones: 8 (820A), 9 (930A), 10 (1040A), 12 (1240A)
  • Number of Cooling Zones: 2 (820A), 3 (930A), 4 (1040A & 1240A)
  • Heated Length: 820A: 284.0 cm / 111.8 in , 930A: 319.5 cm / 125.8 in , 1040A: 355.0 cm / 139.8 in , 1240A: 426.0 cm / 167.7 in
  • Cooled Length: 820A: 71.0 cm / 28.0 in , 930A: 106.5 cm / 41.9 in , 1040A & 1240A: 142.0 cm / 55.9 in
  • Total Length: 820A: 415.0 cm / 163.4 in , 930A: 486.0 cm / 191.3 in , 1040A: 557.0 cm / 219.3 in , 1240A: 628.0 cm / 247.2 in
  • Nitrogen Option: Additional +71.0 cm / 27.9 in length for Nitrogen system
  • Configuration Options: Air / Nitrogen environments
  • Optional Features: Customizable per production requirements
