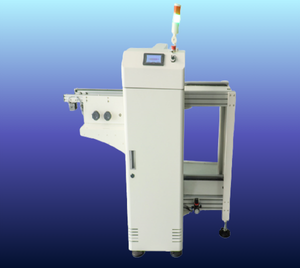

LEAPTECH AUTOMATIC UNLOADER

Efficient and Safe PCB Unloading for Assembly Lines The LEAPTECH AUTOMATIC UNLOADER is designed for automated unloading of PCBs from SMT and Auto Insertion lines, ensuring smooth and efficient handling of boards post-assembly. Built with a PLC control system and LED TFT touch screen panel, it offers precision and ease of operation.

Overview

This unit features four-step pitch selection (10, 20, 30, 40mm) for flexible board spacing and can hold 2 magazines simultaneously for continuous unloading. The anti-clamping plate and fool-proof structure enhance operator safety. Configurable for left to right or right to left flow direction, it is fully SMEMA compliant for seamless integration.

Features

  • Automated Unloading: Streamlines unloading from SMT or Auto Insertion lines.

  • Control System: Equipped with PLC control and LED TFT touch screen.

  • Flexible Pitch Settings: Four pitch options — 10, 20, 30, 40mm.

  • Dual Magazine Capacity: Supports 2 magazines for continuous operation.

  • Safety Design: Includes a special anti-clamping plate and fool-proof mechanism.

  • Flow Direction: Configurable for left to right or right to left operation.

  • SMEMA Compliant: Easy integration with standard assembly lines

Specifications

  • Application: PCB unloading for SMT/Auto Insertion lines
  • Control: PLC with LED TFT touch screen panel
  • Pitch Selection: 10, 20, 30, 40 mm
  • Magazine Capacity: 2 magazines
  • Safety: Anti-clamping plate, fool-proof design
  • Flow Direction: Left to Right / Right to Left (option)
  • Compatibility: SMEMA standard
