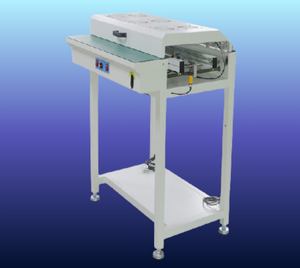

LEAPTECH COOLING CONVEYOR

Efficient Cooling Solution for SMT Production Lines The LEAPTECH COOLING CONVEYOR is designed for effective PCB cooling during production processes, particularly suitable for SMT lines. With adjustable speed and robust construction, it ensures safe and controlled cooling of PCBs after reflow or other heat-intensive processes.

Overview

Available in multiple lengths (500mm, 1000mm, 1500mm, 2000mm), this conveyor accommodates PCB widths from 50mm to 460mm. It features a 7mm flat belt conveyor, powered by a 15-watt motor with speed control ranging from 0.5 to 9 meters per minute. The system is controlled via a Mitsubishi Industrial Control Board for reliable performance.

Features

  • Cooling Conveyor: Designed to cool PCBs effectively post-reflow or heat processing.

  • PCB Capacity:

  • Width: 50mm to 460mm

  • Flow Direction: Left to Right

  • Speed Control: Adjustable 0.5 - 9M/Min via a 15W speed motor.

  • Conveyor Belt: Durable 7mm flat belt ensures stable PCB transport.

  • Control System: Equipped with Mitsubishi Industrial Control Board.

  • Material:

  • Platform: ESD Rubber / Aluminium Alloy

  • Includes Electronics Control Box.

  • Conveyor Height: 900mm (+/-20mm).

  • Power Supply: 230V AC, Single Phase.

  • SMEMA Compatible: Easily integrates into standard SMT production lines.

Specifications

  • Length Options: 500mm / 1000mm / 1500mm / 2000mm
  • PCB Width Range: 50mm - 460mm
  • Speed: 0.5 - 9 M/min
  • Conveyor Height: 900mm (+/-20mm)
  • Motor: 15W
  • Control: Mitsubishi Industrial Control Board
  • Material: ESD Rubber / Aluminium Alloy
  • Power: 230V AC, 1 Phase
  • Dimensions:
  • 500/1000/1500/2000mm (L) x 920mm (W) x 920mm (H)
  • Weight: 55kg / 60kg / 64kg / 70kg (based on size)
