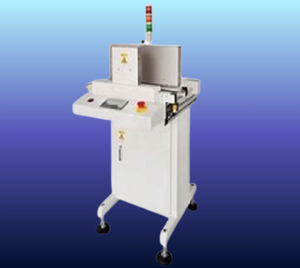

LEAPTECH DE-STACKER / VACUUM LOADER
Automated PCB Loading for SMT Production Lines The LEAPTECH DE-STACKER / VACUUM LOADER is designed for the automated loading of PCB boards onto SMT production lines. Featuring a PLC control system and LED TFT touch screen control panel, this loader ensures efficient and reliable board handling.
Overview
This system provides automatic storage for OK/NG PCBs and features a pass-through function to ensure continuous board transfer along the line. The unit supports configurable left-to-right or right-to-left flow directions and is fully SMEMA compliant, ensuring seamless integration with existing SMT setups.
Features
- Automated PCB Loading: Optimized for SMT production lines.
- Control System: PLC controlled with an LED TFT touch screen for user-friendly operation.
- OK/NG Storage: Automatically separates and stores OK and NG PCBs.
- Pass-Through Function: Enables continuous PCB transfer without interruption.
- Flow Direction: Optional left to right or right to left configuration.
- Standard Compliance: Compatible with SMEMA interface standards.
Specifications
- Function: De-stacker / Vacuum loader for PCB handling
- Control: PLC with LED TFT touch screen
- Features: Automatic OK/NG storage, continuous pass-through
- Flow Direction: Left to Right / Right to Left (optional)
- Compliance: SMEMA standard
