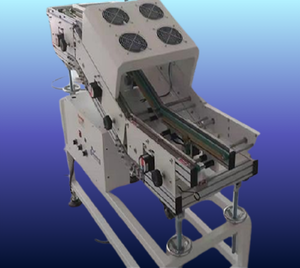

LEAPTECH OUTFEED CONVEYOR

Durable and Adjustable Conveyor for SMT Line Outfeed The LEAPTECH OUTFEED CONVEYOR is a 1.6-meter modular conveyor designed for efficient outfeed operations in SMT production lines. It features a 400mm width with a 2mm imported ESD PVC belt, ensuring smooth and safe PCB transfer.

Overview

Built with a robust 40x60 aluminium structure, the conveyor includes adjustable angle settings and is equipped with cooling fans to support post-reflow or high-temperature processes. The mesh/belt conveyor is fitted with speed control, and the conveyor width is standardized at 300mm for flexible PCB handling.

Features

  • Module Length: 1.6 meters for extended outfeed capacity.

  • Belt Width: 400mm with 2mm imported PVC ESD belt.

  • Structure: Sturdy 40*60 aluminium construction for stability.

  • Adjustable Angle: Allows for customized tilt settings based on process requirements.

  • Cooling Fans: Integrated for PCB cooling during outfeed.

  • Conveyor Type: Mesh/Belt with speed control for precise transfer rates.

  • Flow Direction: Left to Right configuration.

  • Standard Conveyor Width: 300mm for optimal PCB support.

Specifications

  • Length: 1.6 meters
  • Belt Width: 400mm (2mm thick ESD PVC belt)
  • Structure: 40x60 aluminium profile
  • Conveyor Width: 300mm
  • Features: Adjustable angle, cooling fans, speed control
  • Flow Direction: Left to Right
