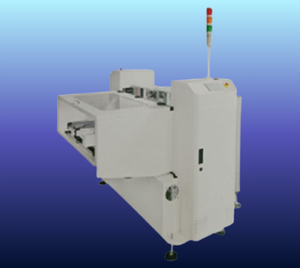

LEAPTECH PCB OK/NG UNLOADER

Automated PCB Unloading with OK/NG Separation The LEAPTECH PCB OK/NG UNLOADER is designed for the automated unloading of PCBs in SMT production lines, efficiently separating good (OK) and bad (NG) boards. Its strong and stable mechanical design, combined with a PLC control system and LED TFT touch screen, ensures dependable and user-friendly operation.

Overview

This unloader is connected to the AOI system to automatically separate PCBs based on inspection results. Built with a special anti-clamping plate structure and foolproof design, it provides operational safety and reliability. The unit supports left-to-right or right-to-left flow direction and adheres to SMEMA standards for seamless line integration.

Features

  • Automated Unloading: For efficient unloading of PCBs post-AOI inspection.

  • OK/NG Separation: Automatically distinguishes and separates good and bad boards.

  • Robust Design: Strong and stable mechanical structure for industrial durability.

  • Control System: PLC control with an LED TFT touch screen panel.

  • Safety Mechanism: Anti-clamping plate and foolproof design for safe operation.

  • Flow Direction: Configurable for left to right or right to left operations.

  • SMEMA Compliant: Ensures compatibility with standard SMT production lines.

Specifications

  • Function: PCB unloader with OK/NG separation
  • Control: PLC with LED TFT touch screen
  • Design: Anti-clamping plate, foolproof mechanism
  • Connectivity: Connects directly with AOI systems
  • Flow Direction: Left to Right / Right to Left (optional)
  • Standard: SMEMA compliant
