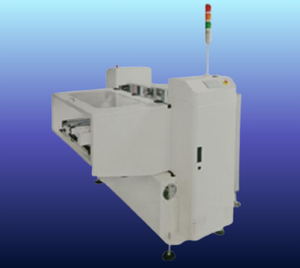

LEAPTECH TURN CONVEYOR

Precision PCB Turning with Safety and Efficiency The LEAPTECH TURN CONVEYOR is engineered for precise 90° PCB rotation within SMT production lines. Designed with a visible safety shield and powered by a planetary reducer, it ensures accurate positioning with maximum operator safety.

Overview

Controlled by a PLC system, this turn conveyor supports left-to-right or right-to-left PCB flow direction. It accommodates PCB sizes up to L450 x W330mm, with manual conveyor width adjustment. Featuring a cycle time of 15 seconds, it is built for efficiency in automated production environments.

Features

  • Safety Design: Equipped with a visible safety shield for enhanced protection.

  • Accurate Positioning: Utilizes a planetary reducer for precise rotation and parallel movement.

  • Controlled Rotation: 90° rotation managed via PLC controller.

  • Flow Direction: Configurable for left to right or right to left PCB flow.

  • PCB Size Capacity: Handles boards up to 450mm x 330mm.

  • Manual Width Adjustment: Easy conveyor width adjustment for varying PCB sizes.

  • Conveyor Speed: 0 - 9 m/min, adjustable as required.

  • Cycle Time: 15 seconds per rotation cycle.

  • Material: Platform made from ESD Rubber / Aluminium Alloy.

  • Air Supply Requirement: 4 - 6 MPa.

  • Power Supply: 230V AC, 1 Phase, 100W.

  • Conveyor Height: 920mm (+/- 20mm).

Specifications

  • Rotation Degree: 90°
  • Cycle Time: 15 seconds
  • PCB Size: L450 x W330mm
  • Width Adjustment Manual
  • Speed: 0 - 9 m/min
  • Conveyor Height: 920mm (+/-20mm)
  • Material: ESD Rubber / Aluminium Alloy
  • Air Supply: 4 ~ 6 MPa
  • Power Supply: 230V AC, 1 Phase, 100W
  • Dimensions: 800mm x 800mm x 1200mm
  • Flow Direction: Left to Right / Right to Left
