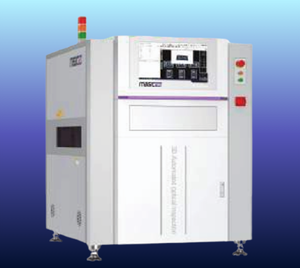

Magicray 3D AOI - Cube

High-Speed, High-Precision 3D Inspection The MagicRay 3D AOI Cube Series features cutting-edge positioning technology and advanced feature analysis algorithms, making it ideal for high-speed, high-precision inspections of SMT components during pre-reflow and post-reflow processes.

Overview

The Cube Series eliminates shadow blind spots and accurately captures 3D component shapes using a state-of-the-art multi-fringe projection technique. Its powerful Three Point Check Software combined with SPC data analysis helps quickly identify the root cause of defects, ensuring higher production quality and reliability.

Features

  • High-Speed, High-Precision: Optimized for SMT pre-reflow and post-reflow inspections.

  • Advanced Algorithms: Enhanced feature analysis for accurate defect detection.

  • Multi-Fringe Projection: Eliminates shadow blind spots, capturing complete 3D component shapes.

  • Three Point Check Software: Improves defect detection and analysis.

  • SPC Data Analysis: Enables root cause identification for process optimization.

Specifications

  • Inspection Type: 3D AOI for SMT components
  • Processes Supported: Pre-reflow & post-reflow
  • Projection Technology: State-of-the-art multi-fringe projection
  • Software: Three Point Check with SPC data analysis
  • Capabilities: Elimination of shadow blind spots, accurate 3D shape capture.
