MAGICRAY Conformal Coating Inspection AOI

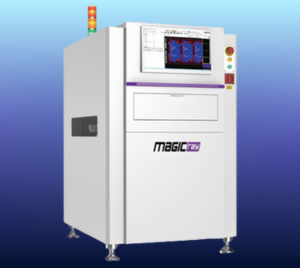

The MAGICRAY Conformal Coating AOI systems are designed for inline automatic inspection of conformal coating, with support for both single-sided (VC5000/VC5100) and double-sided (VC5300) inspection. Equipped with high-brightness UV lighting, they can easily distinguish coatings containing phosphor for reliable detection.
Overview
These AOI systems enable precise and efficient inspection of conformal coating in electronic assemblies. With intelligent programming of detection areas across the field of view (FOV) and CAD-based component recognition, the systems adapt flexibly to various inspection scenarios, ensuring high inspection accuracy and process reliability.
Features
- Single- & Double-Sided Inspection: Models VC5000/VC5100 for single-sided and VC5300 for double-sided inline inspection
- High-Brightness UV Lighting: Effectively detects coatings containing phosphor
- Intelligent Programming: Supports defining detection areas across FOV and component-level inspection via CAD
- Adaptability: Suitable for multiple conformal coating inspection requirements
- Inline Operation: Integrates seamlessly into automated production lines
Specifications
- System Type: Conformal Coating Automated Optical Inspection (AOI)
- Models: VC5000 (single-side), VC5100 (single-side), VC5300 (double-side)
- Lighting: High-brightness UV lighting for phosphor-containing coating detection
- Programming: Intelligent detection area setup across FOV; CAD-based component inspection
- Application Use: Inline conformal coating inspection for PCBs and electronic assemblies
