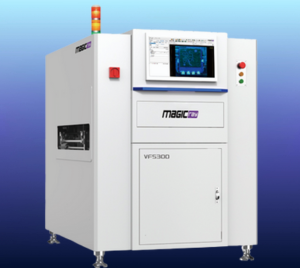

MAGICRAY VF5100/VF5300 Series Automatic Underfill Adhesive Optical Inspection Machine
The MAGICRAY VF5100 (Single-side) and VF5300 (Double-sided) systems are designed for accurate inspection of Underfill (UF) adhesive on component sides. They ensure reliable proportion measurement of climbing height and are compatible with multiple adhesive types, including UV, RTV, and thermal dissipation adhesives, in addition to normal component inspection.
Overview
The VF5100/VF5300 Series provides precise inspection of underfill adhesive applications in semiconductor and electronic assembly. With support for both single-side and double-sided inspection, these systems help maintain process stability and product reliability across a variety of adhesive materials and component layouts.
Features
- Single-Side & Double-Sided Options: VF5100 supports single-side inspection, VF5300 enables double-sided coverage
- Accurate Adhesive Height Detection: Ensures precise proportion measurement of UF adhesive climbing height
- Multi-Adhesive Compatibility: Detects UV adhesive, RTV adhesive, heat dissipation adhesive, and more
- Normal Component Inspection: Extends inspection capabilities beyond adhesives to standard components
- Stable & Reliable Operation: Designed for high process reliability in demanding production environments
Specifications
- System Type: Automatic Underfill Adhesive Optical Inspection (AOI)
- Models: VF5100 (Single-side), VF5300 (Double-sided)
- Inspection Target: Underfill adhesive climbing height on component sides
- Adhesive Types Supported: UF adhesive, UV adhesive, RTV adhesive, heat dissipation adhesive
- Additional Functionality: Compatible with normal component inspection
