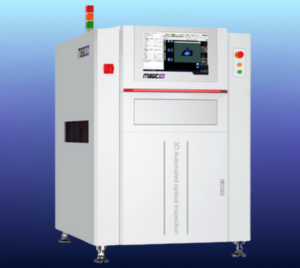

MAGICRAY VS7300 Double-Side 3D AOI
The MAGICRAY VS7300 Series is a double-sided 3D Automated Optical Inspection system, equipped with a new-generation optical imaging system for realistic and efficient reconstruction of 3D component images. It is widely used for post-wave soldering inspection and final double-sided PCB inspection.
Overview
The VS7300 delivers simultaneous top and bottom inspection in a single process, ensuring complete coverage for both sides of a PCB. Its advanced optical system enables high-precision 3D image reconstruction, providing reliable defect detection and accurate measurement. Specifically designed for wave soldering and final double-sided inspection, the system enhances production efficiency while ensuring maximum inspection reliability.
Features
- Double-Sided 3D Inspection: Performs simultaneous inspection of both PCB sides in a single cycle
- High-Precision Imaging: Advanced optical system ensures accurate 3D reconstruction of components
- Optimized for Wave Soldering: Suitable for post-wave soldering inspection and double-sided final checks
- Reliable Defect Detection: Identifies component height, placement errors, missing pins, and solder issues
- Efficient Production: Reduces inspection time and saves factory floor space
- Stable Performance: Uses high-speed industrial cameras and precise motion control for consistent results
Specifications
- System Type: Double-Sided 3D Automated Optical Inspection (AOI)
- Series: MAGICRAY VS7300
- Inspection Technology: Optical 3D imaging for realistic reconstruction
- Applications: Post-wave soldering inspection and double-sided PCB final inspection
- Defect Coverage: Floating components, missing pins, placement errors, solder defects
- Performance: High-speed inspection with stable image capture
- Integration: Suitable for automated production lines with dual-sided inspection needs
