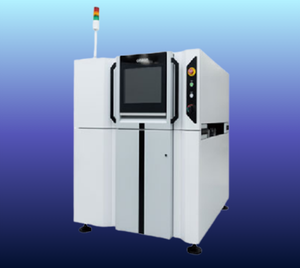

OMRON 3D Automated Optical Inspection – VT S10 SERIES
Advanced AI-Assisted 3D Inspection The OMRON VT S10 Series AOI platform integrates advanced AI-assisted programming with Omron's innovative technology to deliver comprehensive analysis of solder joints. Leveraging quantitative measurements aligned with IPC standards, the VT S10 Series helps manufacturers achieve high-quality production outcomes. The system includes Omron's robust offline software suite, enabling users to monitor results, make quick adjustments, and maintain production efficiency.
Overview
The VT S10 Series features models equipped with advanced lighting and projection systems for precise 3D measurements of solder joints and components. With options like MDMC lighting, Multi-Phase-Shift (MPS) projectors, and angled cameras, the VT S10 Series ensures in-depth, reliable inspection for demanding SMT environments.
Features
- AI-Assisted Programming: Simplifies setup while enhancing inspection accuracy.
- Quantitative Measurements: Conforms to IPC standards for solder joint analysis.
- Robust Offline Software Suite: Enables real-time monitoring and process adjustments.
- MDMC Lighting: Ensures consistent and accurate imaging.
- Multi-Phase-Shift Projectors: 4 MPS projectors deliver precise 3D measurement.
- Angled Cameras: 4x 5MP cameras provide thorough visual inspection.
Specifications
- VT-S1040 AOI:
- Equipped with MDMC lighting and 4 Multi-Phase-Shift (MPS) projectors.
- Provides highly accurate 3D measurements for every solder joint and component.
- VT-S1080 AOI:
- Complete optical inspection solution.
- Features MDMC lighting, 4 MPS projectors, and 4x 5MP angled cameras for the most comprehensive inspection.
