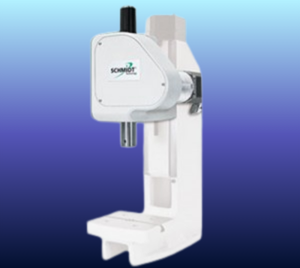

SCHMIDT ELECTRIC PRESS

The SCHMIDT Electric Press delivers up to 4 kN of force, with a maximum speed of 150 mm/s and a 100 mm stroke. As a fully electric system, it eliminates the need for compressed air or hydraulic pressure, making it energy-efficient and easy to integrate into automated production lines.

Overview

Controlled via PLC, the Electric Press can be quickly parameterized using the EP Assistant software, enabling up to 14 different drive sets with unique settings for position, speed, and acceleration/deceleration ramps. These drive sets are stored within the integrated motor electronics and can be easily selected by an external PLC to create precise displacement profiles.

Features

  • Max Force: 4 kN

  • Max Speed: 150 mm/s

  • Stroke: 100 mm

  • Fully Electric: No compressed air or hydraulic pressure required.

  • Easy Integration: Simple to integrate into automated systems.

  • EP Assistant Software: Enables configuration of 14 programmable drive sets.

  • Parameter Control: Position, speed, and acceleration/deceleration can be tailored for each application.

  • External PLC Compatibility: Drive sets can be selected using just 4 outputs and 2 inputs.

Specifications

  • Force Capacity: 4 kN
  • Speed: 150 mm/s (maximum)
  • Stroke Length: 100 mm
  • Control: PLC-based with EP Assistant software
  • Programmable Drive Sets: Up to 14
  • Integration: Suitable for automated production systems
  • Applications:
  • Precision assembly
  • Press-fitting
  • Forming operations
  • Custom displacement profiles for diverse industrial needs
