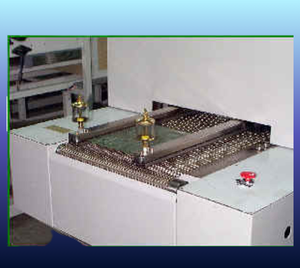

TANGTECK REFLOW OVEN

The Tangteck Reflow Oven series is engineered to meet the demands of SMT and semiconductor manufacturing with exceptional reliability, precision, and energy efficiency. These lead-free compatible ovens deliver outstanding thermal performance at a competitive cost, supporting various production needs with the industry’s longest heated tunnel lengths in their class.

Overview

Tangteck’s SMD-CR series reflow ovens represent a high-performance solution for SMT reflow soldering. Designed for stable temperature control and optimized thermal profiles, these ovens ensure precise soldering results across multiple heating zones. The compact footprint, modular expandability, and wide transport compatibility make it an ideal fit for both low- and high-volume production lines.

Features

  • Precision Heating: Accurate temperature control with up to 14 heating loops

  • Zone Flexibility: Available in 5, 6, and 7-zone configurations for varied process requirements

  • Speed Optimized: Mesh transport up to 200 cm/min; chain up to 140 cm/mi

  • Compact & Expandable: Space-saving design with optional longer tunnel models

  • Lead-Free Compatibility: Designed for RoHS-compliant soldering operations

  • Process Reliability: Ensures consistent soldering with ambient to 360°C range

  • Power Efficient: Rated power from 23 kW to 37 kW across models

  • Board Handling: Supports max board width of up to 400 mm

  • Cost-Effective: Combines durable design with affordable operation costs

Specifications

  • Power Rated: 23 kW to 37 kW
  • Heating Zones: 5 / 6 / 7 Zone
  • Number of Heating Loops: Up to 14
  • Max Speed (Transport): Mesh – up to 200 cm/min, Chain – up to 140 cm/min
  • Process Height: Max 25 mm
  • Max Board Width: Mesh – 400 mm, Chain – 380 mm
  • Temperature Range: Ambient to 360°C
  • Power Supply: 220 V, 3P, 60 Hz (380 V 3P, 4 Wire available)
  • Dimensions (mm): 5-Zone: 4200 × 1200 × 1360 (Extended: 4600 × 1200 × 1360), 6/7-Zone: 4900 × 1200 × 1360 (Extended: 5300 × 1200 × 1360)

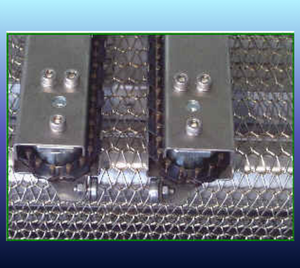

  • Transport Options: Mesh / Chain
  • Availability: Custom models with up to 12 heating zones available on request
