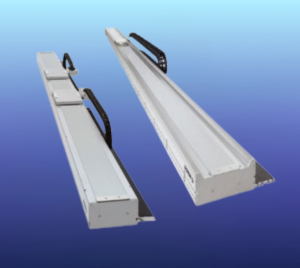

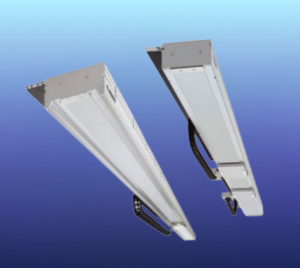

Yamaha Single axis robot Phaser Series

The Phaser Series from Yamaha is a high-performance linear motor actuator designed to meet the demands of long-stroke, high-speed, and high-precision operations. Built for modern automation, this series addresses the needs of faster and larger manufacturing and transfer systems.

Overview

With its direct-drive linear motor design, the Phaser Series delivers exceptional accuracy and responsiveness. Whether for fine electronic assembly or heavy-duty mechanical processes, it supports a wide range of tasks — from screw tightening, insertion, and adhesive application, to soldering and high-speed transfers.

Features

  • Linear motor for ultra-high-speed and long-stroke movement

  • Direct-drive system ensures superior precision and minimal vibration

  • Compatible with various end-effectors and tip tools

  • No ball screws = no backlash, minimal maintenance

  • Ideal for fast transfer, insertion, or pick-and-place tasks

  • Clean, low-particle, oil-free operation

  • High-speed positioning for increased throughput

  • Modular and scalable — suitable for advanced automation systems

  • Continuously upgraded to meet evolving industrial needs

Specifications

  • Drive Type: Linear motor (direct drive)
  • Stroke Range: Long stroke options available (exact range depends on model)
  • Max Speed: Up to 2500 mm/s (model dependent)
  • Max Acceleration: Up to 3G
  • Repeatability: ±0.01 mm
  • Payload: Varies by model — supports light to moderate loads
  • Mounting: Horizontal or vertical
  • Typical Applications: Electric & electronic component assembly , Mechanical component insertion, Adhesive and solder application , High-speed material transfer , Screw tightening and pick & place systems
