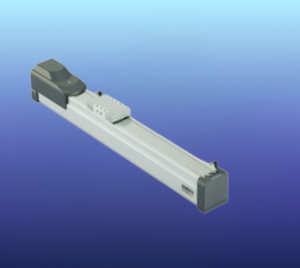

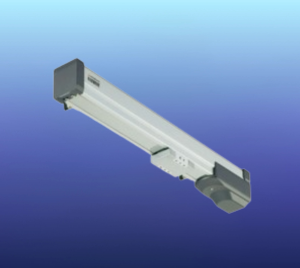

Yamaha Single axis robot Transervo Series
The Transervo Series from Yamaha introduces next-generation electric cylinders equipped with a vector control system stepping motor. These compact actuators offer a smart alternative to air cylinders — promoting automation, cost-efficiency, and energy savings.
Overview
Built for high-performance and ease of integration, the Transervo Series meets the demands of modern manufacturing by providing precise motion control across diverse industrial sectors. Whether it’s assembly, inspection, transfer, or material handling, these actuators are optimized for environments that require compact, clean, and efficient automation solutions.
Features
- Replaces air cylinders to reduce energy consumption
- Vector-controlled stepping motor for high precision and low cost
- Ideal for light-duty automation tasks
- Compact and maintenance-free structure
- Clean and oil-free operation — suitable for food & pharmaceutical lines
- Compatible with multiple control methods (positioning, speed, and push force)
- Easy to program and integrate
- Low vibration and noise
- Ideal for small parts handling, inspection, assembly, and transfer
Specifications
- Drive System: Stepping motor with vector control
- Stroke Lengths: Varies by model (commonly 50–300 mm)
- Maximum Payload: Approx. 2–15 kg depending on model and orientation
- Repeatability: ±0.02 mm
- Speed Range: Up to 600 mm/s
- Push Force: Up to 100 N
- Installation: Horizontal or vertical mounting
- Operating Environment: Cleanroom capable (select models)
- Typical Applications: Electronics assembly , Medical & pharmaceutical handling , Precision inspection , Light-duty part transfer
