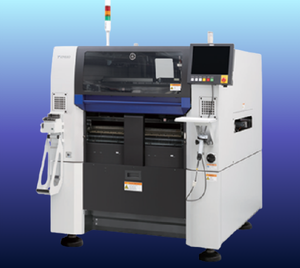

YAMAHA YRM 10

The Yamaha YRM 10 is a next-generation, high-end mounting system designed for high-efficiency and defect-free production. As part of the YRM series, it embodies the concept of a compact, versatile, high-speed mounter suitable for diverse production requirements. With its YR series’ high-speed multi-purpose inline head, the YRM 10 offers exceptional flexibility and speed without the need for head replacement.

Overview

The YRM 10 is engineered for dynamic, defect-free manufacturing by supporting a vast component range — from super-miniature chips to large components up to 100 x 55mm. Its robust head delivers 52,000 CPH, optimizing throughput while ensuring mounting accuracy of ±35μm (Cpk≧1.0). The integrated component-recognition camera on the head identifies components during transportation, and the shortest-route transport mechanism enhances overall productivity.

Features

  • High-Speed Multi-Purpose Inline Head: Supports components from super miniature chips to large 100 x 55mm components.

  • No Head Replacement Required: Simplifies operation across diverse production needs.

  • Exceptional Speed: Achieves a placement rate of 52,000 CPH.

  • High Precision: Mounting accuracy of ±35μm (Cpk≧1.0).

  • Component-Recognition Camera: Identifies components during transit for enhanced accuracy.

  • Shortest-Route Transport: Improves mounting efficiency and production speed.

  • Compact & Versatile: Designed as a space-saving solution for multi-purpose production.

Specifications

  • Model: YRM 10
  • Mounting Speed: 52,000 CPH
  • Mounting Accuracy: ±35μm (Cpk≧1.0)
  • Component Size Range: Super-miniature chips to 100mm x 55mm
  • Head Type: YR Series High-Speed Multi-Purpose Inline Head
  • Component Recognition: Built-in recognition camera on the head
  • Transport Path: Shortest-route from pickup to mounting
  • Application: High-efficiency, high-accuracy SMT production
  • Form Factor: Compact design optimized for space-saving and flexibility
