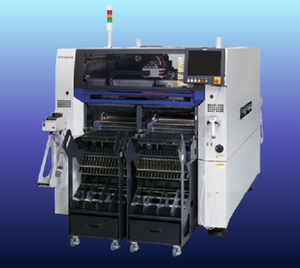

YAMAHA YRM 20 DL

The Yamaha YRM 20 DL embodies the evolution of the 1-head solution in a dual-lane platform, achieving exceptional productivity and flexibility. Designed to tackle diverse PCB production demands, this system reaches a class-leading speed of 120,000 CPH, maintaining high performance without head replacements.

Overview

With its 2-beam, 2-head configuration, the YRM 20 DL is engineered for efficient dual-lane production, optimizing throughput while preserving precision. Its rotary head technology enhances the mounting of ultra-small components, eliminating downtime for head changes. This enables seamless, high-speed production aligned with the 1-head solution concept Yamaha is renowned for.

Features

  • Top-Class Speed: Achieves an impressive 120,000 CPH in dual-lane mode.

  • Rotary Head Innovation: Capable of mounting super-tiny 0201mm components with ease.

  • Component Range: Supports components from 0201mm chips to medium-sized odd-shaped components of 12 x 12mm, with a maximum height of 6.5mm.

  • Dual-Lane Flexibility: Increases line productivity by parallel processing on two lanes.

  • No Head Replacement: Continuous operation across varied component sizes without the need for head swaps.

  • Enhanced Versatility: Ideal for high-mix, mid-volume production lines requiring speed and flexibility.

Specifications

  • Model: YRM 20 DL
  • Mounting Speed: 120,000 CPH
  • Head Type: Rotary Head
  • Component Size Range: 0201mm to 12 x 12mm
  • Max Component Height: 6.5mm
  • Beams/Heads: 2 beams, 2 heads
  • Lane Type: Dual-Lane
  • Flexibility: Excellent for medium-sized, odd-shaped component mounting
  • Application: Perfect for manufacturers seeking speed, flexibility, and efficient space utilization in SMT production
