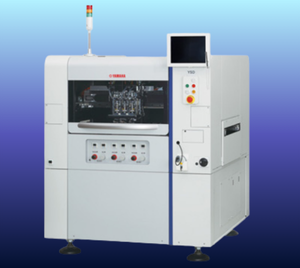

YAMAHA YSD

High-Speed, High-Accuracy Dispensing for High-Density Mounting The YAMAHA YSD is a high-speed, high-accuracy, and stable dispensing system designed specifically for high-density mounting applications. It offers both non-contact dispensing and line dispensing, supporting a wide range of PCB assembly requirements.

Overview

Engineered for precision and speed, the YSD achieves a dispensing tact time of 0.07 seconds per shot with a remarkable dispensing accuracy of ±0.05mm (μ+3σ). This makes it ideal for advanced manufacturing where precision and consistency are critical.

Features

  • High-Speed Performance: 0.07 sec/shot dispensing tact time.

  • High Accuracy: ±0.05mm (μ+3σ) dispensing precision.

  • Non-Contact Dispensing: Prevents contamination and damage to sensitive components.

  • Line Dispensing: Capable of continuous line dispensing for efficient production.

  • Versatile Applications: Supports a wide range of dispensing tasks for high-density PCB mounting.

  • Stability: Engineered for consistent and reliable performance in mass production.

Specifications

  • Dispensing Tact: 0.07 sec/shot
  • Dispensing Accuracy: ±0.05mm (μ+3σ)
  • Dispensing Modes: Non-contact and line dispensing
  • Application: High-density PCB mounting
  • Performance: High-speed, high-precision, and stable operation
