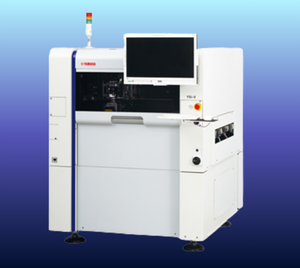

“Yamaha” YSi–V
High-End Hybrid Optical Inspection System The Yamaha YSi–V is a high-end hybrid optical inspection system that delivers advanced inspection capabilities in a single unit. Designed for flexibility and ease of use, it combines 2D, 3D, and 4-direction oblique inspections to ensure unmatched precision and reliability. With more than double the inspection capability of ordinary systems, the YSi–V sets the standard for hybrid optical inspection, helping manufacturers meet stringent quality demands.
Overview
The Yamaha YSi–V represents a comprehensive solution for PCB inspection, capable of performing 2D, 3D, and 4D (4-way angular camera) inspections within a single platform. This hybrid system is ideal for manufacturers seeking higher accuracy and faster inspection processes without sacrificing quality. With options for high-resolution digital cameras and advanced imaging, the YSi–V stands as Japan’s highest-selling 3D AOI system.
Features
- 2D Inspection: High-speed, high-resolution 2-dimensional inspections.
- 3D Inspection: Height and sloped surface inspections (optional).
- 4D Inspection: 4-way angular oblique image inspections (optional).
- Camera Options: Available with 5MP or 12MP digital cameras.
- Superior Performance: More than double the inspection capability of standard systems.
- Market Leader: Highest selling 3D AOI in Japan.
Specifications
- Inspection Types: 2D, 3D (optional), 4D oblique (optional)
- Camera Resolution: 5MP / 12MP Digital Cameras
- 3D Capabilities: Height measurement and sloped surface detection
- Oblique Inspection: 4-direction angular camera
- Performance: High-speed, high-precision inspection
- Market: No. 1 selling 3D AOI in Japan
