YRi-V

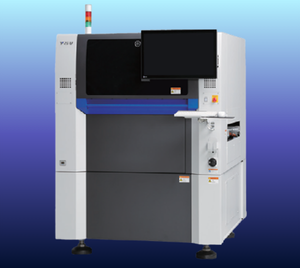

Multi-Purpose Optical Inspection System The Yamaha YRi-V is a versatile optical inspection system designed for super high-speed and high-accuracy 3D/4D inspections across all markets. It features mounted coaxial lighting and 5μm lenses, making it highly suitable for precision device inspections.
Overview
The YRi-V delivers advanced inspection performance with a super high-speed rate of 56.8 cm²/sec and supports 8-way projectors with 4-way oblique imaging inspections. Equipped with a 20MP 4-angle camera, the system ensures superior image quality and comprehensive analysis. Its expanded 3D/4D measurement range accommodates components up to 25mm in height, enabling reliable inspection of various component types, including 0201mm components mounted adjacently.
Features
- Super High-Speed 3D Inspections: 56.8 cm²/sec scanning speed.
- Super High-Accuracy 3D/4D Inspections: Enhanced precision with 8-way projector and 4-way oblique imaging.
- 20MP 4-Angle Camera: Captures detailed imagery for comprehensive inspection.
- Device Sector Optimization: High-resolution 5μm lenses with coaxial lighting for precision inspection.
- Inspection of Tiny Components: Inspects 0201mm components mounted adjacently.
- Reduced Blind Spots: Projector system minimizes blind spots for large components.
- Extended Measurement Range: 3D/4D inspections for components up to 25mm in height.
Specifications
- Inspection Speed: 56.8 cm²/sec
- Camera: 20MP 4-angle camera
- Optics: 5μm lenses with coaxial lighting
- Projector: 8-way projector
- Oblique Imaging: 4-way
- Component Size Capability: Down to 0201mm
- Measurement Range: Components up to 25mm height
