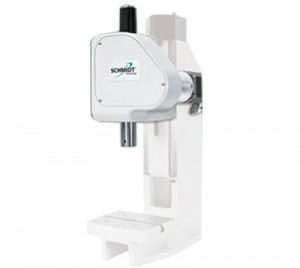

SCHMIDT Electric Press offers: 4 kN maximum force, 150 mm/s maximum speed, and 100 mm stroke.
ElectricPress is PLC controlled and does not require compressed air or hydraulic pressure. It can be easily and quickly integrated into automated systems.It can be parameterized and loaded with up to 14 different drive sets; each with position, speed and acceleration/deceleration ramp with the EP Assistant software.
Parameterized drive sets are stored inside the integrated motor electronics. To optimize application specific assembly processes, drive sets can be selected individually with any external PLC to create a displacement profile. This requires only 4 outputs and 2 inputs.
