3D MID: Molded Interconnect Device -
Newly developed models for which dispense and placement not only on standard PCB but also on concave-convex, tilting and curved surface are also to be realized. To ensure the machine for 3D MID applications such as automotive, medical and Telecommunications in future, machine structures required have already been arranged accordingly.

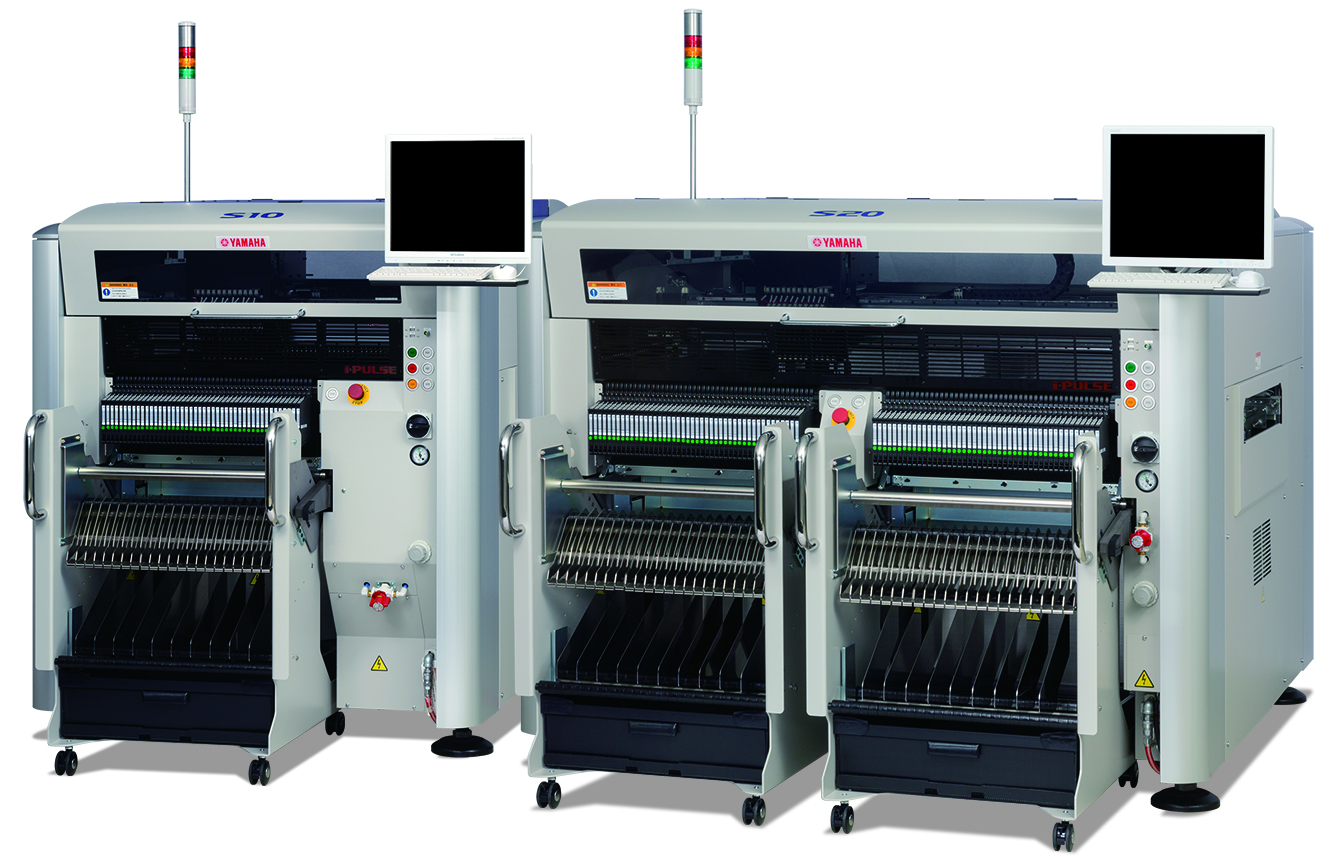

Yamaha S10 / S20
Ultimate Flexibility to realize 3D MID* Modular Placement system
- Enhancement to 3D MID
- Large board handling capability
- Wide ranging component handling capability ( 0201- 120mm x 90 mm , BGA , CSP ,Connectors ,other odd- shaped components ) and high feeder capacity
- Ultimate flexibility and fast & easy setup
- Placement speed upto 45,000CPH
- Placement accuracy A (μ+3σ) - CHIP +/-0.040mm (40 microns)
- Placement accuracy B (μ+3σ) - IC +/-0.025mm (25 microns)

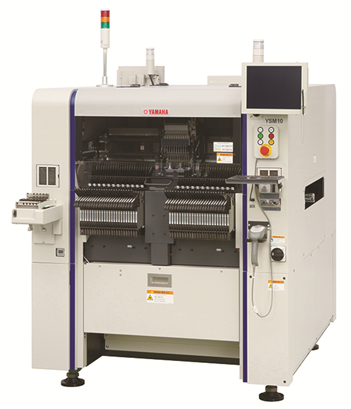

Yamaha YSM10 – (Compact High Speed Modular Placement System)
- 46,000CPH World Leading*1-Beam/1-Head Class, Entry level Surface Mounter
- HM head adopted with new scan camera for broader range of component size compatibility
- Component handling capability from 03015 to 55*100mm
- Scalability for future possible addition in volume and speed
- Enhanced functionality to provide for table production

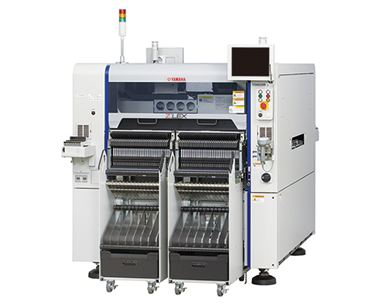

Yamaha YSM20R
High-end High-Efficiency Modular Placement System
- World’s fastest mounting speed in its class; 5% faster than the YSM20. Featuring a new wide-scan camera with improved component adaptability.
- Rated placement speed upto 95,000 CPH (Premium Version)
- Two head variants HM and FM to choose from; Component handling from 03015 to 55*100mm, height upto 28mm.
- Newly-developed Auto Loading Feeder (ALF) that revolutionizes feeding tape components by eliminating reliance on user skill
- sATS30NS Auto Tray Sequencer (ATS) for nonstop tray replacement
- All new optional Non-stop feeder carriage exchange system

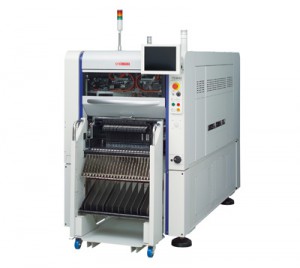

Yamaha YSM40R
Ultra-High-Speed Modular Placement System
- Achieves revolutionary productivity of 200,000 CPH* giving it the world’s fastest speed on a compact platform
- Various head options to choose from, to suit customer requirement.
- Highest productivity in the world.
- Flexible response for different production configurations.
- High tech to support high mounting quality & a high machine operating rate.
Yamaha I-CUBE 10 (YRH-10)
- High-speed flexible head covers from super-tiny components to middle size odd-shaped components. The adoption of a scan camera makes the operation distance from pickup to mounting shortest, which achieves high productivity
- High-speed and high-accuracy mounting ±15μm (Cpk≧1.0) CPH10,800 (when die is supplied from wafer) Note: under optimum conditions
- Handling Large PCBs L330 x W250mm
- Available for intelligent feeder which improves the pickup accuracy for tape reel component. Combining with the Multiple Accuracy Compensation System MACS realizes high-accuracy component pickup and mounting

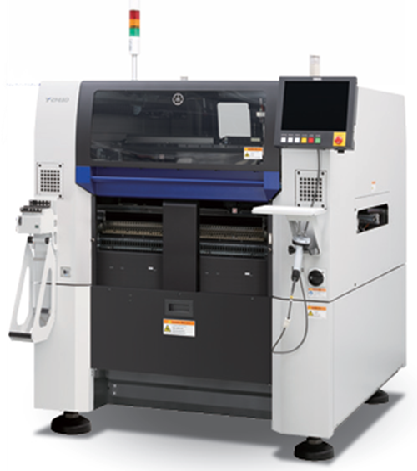

Yamaha YRM 10
- High-efficiency, defect-free production. The YRM series high end system. ‘Just right, small, multi-purpose high speed mounter.
- Features YR series’ high-speed multi-purpose inline head. Supports a wide range of components from super miniature chips to large 100 x 55 mm components without head replacement. Also realizes the high speed of 52,000 CPH, demonstrating great productivity with just one head.
- Also secures an accuracy of ±35μm (cpk≧1.0). The head side features a component-recognition camera to identify components during transportation. Shortest-route transportation from pickup to mounting, improving productivity.

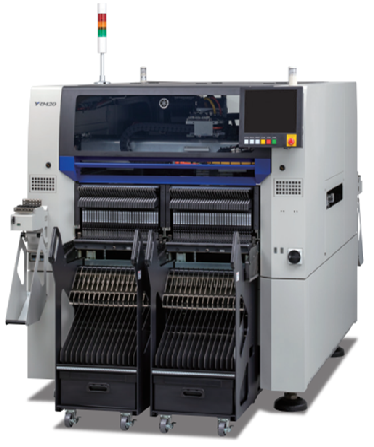

Yamaha YRM 20
- The 1 head solution has reached an ultimate stage. An all-around surface mounter delivering both overwhelming productivity and flexibility.
- 2 beams – 2 heads with highest speed level in its class 115,000 CPH.
- Rotary head boosts component mountability of tiny components. This maintains high speed production since head replacements are no longer needed.
- The flexible “all-around” head not only has high-speed, but also has the versatility essential for mounting super-tiny 0201mm components all the way up to large-size components of 55 x 100mm and heights up to 15mm.

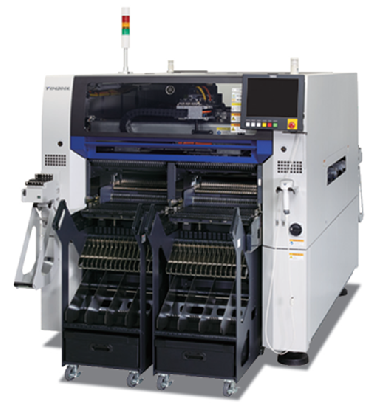

Yamaha YRM 20 DL
- The 1 head solution has reached an ultimate stage. A dual-lane surface mounter delivering great productivity, flexibility and ability to take on PCB.
- 2-beam 2-head Dual-lane class with highest speed level in its class 120,000 CPH.
- Rotary head boosts component mountability of tiny components. This maintains high speed production since head replacements are no longer needed. This is technology that helps carry on the 1 head solution concept. This head can handle components ranging from super-tiny 0201mm components on up to medium-sized odd-shaped components of 12 x 12mm dimensions with heights of 6.5mm.
