Leaptech PCB Handling Equipment

This equipment is used for the loading operation of PCBs on the PCB Assembly Line (SMT/ Auto insertion).
PLC control system.
LED TFT touch screen control panel.
Four step pitch selection (10, 20, 30, 40 mm).
2 magazines loading capability.
With the special structure of anti-clamping plate and fool proof.
Direction from ‘left to right’ or ‘right to left’ (option).
Standard SMEMA.

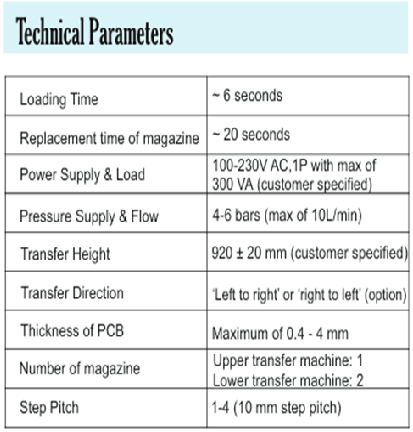

This equipment is used for the unloading operation of PCBs on the PCB Assembly Line (SMT/ Auto insertion).
PLC control system.
LED TFT touch screen control panel.
Four step pitch selection (10, 20, 30, 40 mm).
2 magazines loading capability.
With the special structure of anti-clamping plate and fool proof.
Direction from ‘left to right’ or ‘right to left’ (option).
Standard SMEMA.

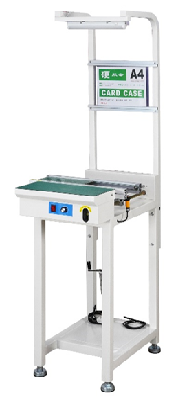

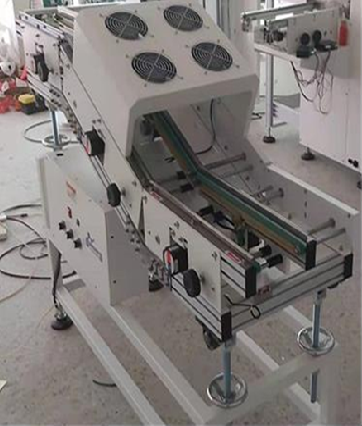

This equipment is used for visual inspection of the PCBs on the PCB Assembly Line (SMT/ Auto insertion).
With inspection mode and release button.
L size, with 3 sensor.
With Mitsubishi Industrial Control Box.
Platform material - ESD Rubber/ Aluminium alloy.
Different lengths available upon request.
SMEMA Compatible.

With Inspection Mode & release button.
L Size, with 4 Sensor & Sensor for OK/NG identification.
Can handle PCB size of 1000/1500 / 2000mm length, PCB Width 50 to 460mm & PCB Flow Direction Left to Right.
7 mm Flat Belt Conveyor.
Conveyor Height – 900 (+/- 20mm), 15 Watt speed motor.
Speed control of 0.5 - 9M/Min, Mitsubishi Industrial Control Board & Flow Left to Right.
With Electronics Control Box.
Platform material - ESD Rubber/ Aluminium alloy.
Power Supply: 230V AV, 1 Phase, Dimensions: 1000/1500/2000mm X 920mm X 1900mm & Weight: 65Kgs/70Kgs / 80Kgs.
SMEMA Compatible.

L Size Conveyor, PCB Width 50 to 460mm & PCB Flow Direction Left to Right.
7 mm Flat Belt Conveyor & Conveyor Height – 900 (+/- 20mm).
15 Watt speed motor, Speed control of 0.5 ‐ 9M/Min.
Mitsubishi Industrial Control Board.
Left to Right flow With Electronics Control Box.
Platform material - ESD Rubber/ Aluminium alloy.

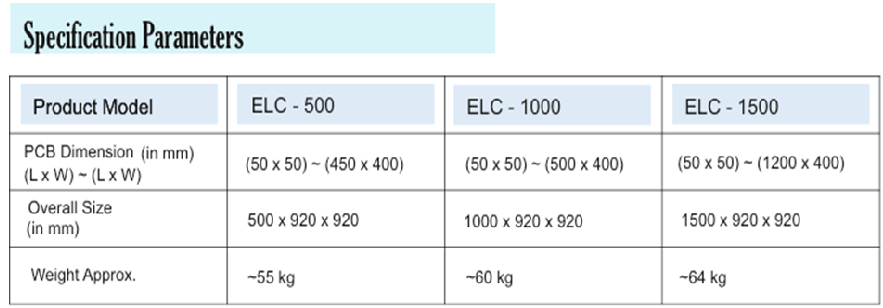

Power Supply: 230V AV, 1 Phase, Dimensions: 500/1000/1500/2000mm X 920mm X 920mm.
Weight: 55/60Kgs/64Kgs / 70Kgs.

This equipment is used for the loading operation of board on the SMT production line.
PLC control system & LED TFT touch screen control panel.
Automatic storage of OK/NG PCB & Pass through function to send the PCB boards continuously.
Direction from left to right or right to left(option) & Standard SMEMA.

This equipment is used for the unloading operation of PCBs on the SMT production line.
Strong and Stable mechanical design, PLC control system & LED TFT touch screen control panel.
With the special structure of anti-clamping plate and foolproof.
Connections on the back of the AOI to separate the good board and bad board on the production line.
Direction from left to right or right to left(option).
Standard SMEMA.

The turning section is designed with a visible safety shield to ensure the highest level of safety.
Turning and parallel moving uses a planetary reducer for accurate positioning.
PLC controller, Rotation degree: 90 ͦ & PCB flow direction left to right or right to left.
Can handle PCB size L450 x W330 mm & With manual Conveyor Width adjustment.
Cycle time: 15 Sec.
7 mm Flat Belt Conveyor, Conveyor Height: 920 (+/- 20mm) & PCB conveying speed of 0 – 9m/Min.
Platform Material: ESD Rubber Material / Aluminium Alloy.
Air Supply: 4 ̴6MPa.
Power Supply: 230V AV, 1 Phase, 100w.
Dimension: 800mm X 800mm X 1200mm.

The unit installed after AOI for separated NG board for visual inspect and good board will pass through without stopping.
PLC Program control.
Start / Stop pushbutton, Centre PCB stop position & Touchscreen control panel.
Anti-static conveyor belt, Easy way of belt replacement & Reject and by-pass mode selectable.
Heavy bottom design to prevent shifting, PCB precise stopping in position.
Smooth and parallel width adjustment.(lead screw).
SMEMA compatible.

This unit can remove glass fiber, dust particles, etc. on top surface of PCB before solder paste printing , and improve production yield. Especially suitable for PCB which is mounted extremely small components.
PLC Program control & On-line automatic clean.
All types of dust can be removed.
Adhesive clean roll removes all dust from rolls.
Ionizer removes electric static on the PWB.
Draw-out design for Easy changing of adhesive rolls.
Preset number of PCB & pre-warning counter to purge adhesive rolls, Automatic conveyor width adjustment.
SMEMA compatible.
