Through Hole Auto Insertion Machine

Note: Machines stripped to frame level & then completely Remanufactured with latest upgrades

REFURBISHED AXIAL & RADIAL COMPONENT INSERTION MACHINE

Refurbished

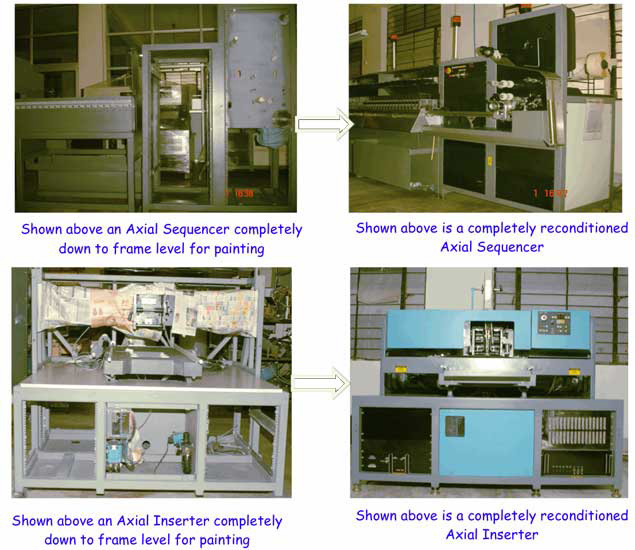

We HAVE A fully equipped reconditioning center. Instead of "REFURBISHED" we use the word "REMANUFACTURED" as that will be more appropriate because we strip out whole machine to frame level during our reconditioning process and the start rebuilding the machine.
We offer a full range of refurbished and brand new THROUGH whole machines for PCB assembly.

   Techwin Through Hole Auto Insertion Machines

screwdriver

ZHX-R20C - IN Line Radial Component Insertion Machine

  • Computerized With English Interface Which Convenient & User Friendly
  • Insertion Direction 0-360°, With 1° Increment
  • Imported Precision Ball Screw And AC Servo Motor Drive For Positioning Accuracy < 0.001 Mm
  • Machine Vision System, Improve Position Alignment, Multi Fiducially To Maintain Accuracy Of Insertion
  • Intelligent Fiducial Correction Function
  • Front & Rear Touch Screen Control
  • USB Port For Dada Transmission
  • High Speed Up To 22000 CPH
  • In Line Production Capability
screwdriver

ZHX-A30D - IN Line Axial Insertion Machine

  • Computerized With English Interface Which Convenient & User Friendly
  • 4 Different Insertion Direction Of 0° , 90°,180°, 270°
  • Imported Precision Ball Screw And AC Servo Motor Drive For Positioning Accuracy < 0.001 Mm
  • Machine Vision System, Improve Position Alignment, Multi Fiducially To Maintain Accuracy Of Insertion
  • Front & Rear Touch Screen Control
  • Intelligent Fiducial Correction Function
  • USB Port For Dada Transmission
  • All-In-One Structure With Component Sequencing Models, Stand Alone Sequencing For Cost Reduction. No Longer Required Adhesive Tape For Component Sequencing
  • Independent Jumper Feeding Mechanism to Feed Length According To Actual Insertion Pitch
  • High Speed Up To 22000 CPH Insertion Speeds
  • In Line Production Capability
