C-FRAME
Force ranging from 15 kN to 100 kN
The C-Frame design offers full accessibility when manually inserting and removing parts.
Easy adaptation to different tool and part heights because of simplistic height adjustment with angular gear.
H-FRAME
H-FRAME DESIGN WITH AND WITHOUT FORCE/STROKE MONITORING
Force ranging from 100 kN to 220 kN in power stroke
SCHMIDT Hydro- Pneumatic Presses in H-Frame design are available with or without force monitoring. Force monitoring is provided in combination with SCHMIDT® Press Control 600.Includes stable frame with low bending for the absorption of high forces and Flexible tool location in the fixture mounting plate due to replaceable centering bushing with precision bore.

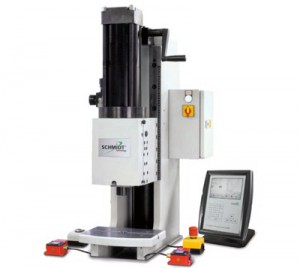

PRESS WITH FORCE MONITORING
Force ranging from 15 kN to 100 kN
SCHMIDT Hydro Pneumatic Presses with force/stroke monitoring are offered as complete system with control unit Press Control 600.These systems are characterized by sensors and signal amplification integrated in the press head. These signals are evaluated in real time.
