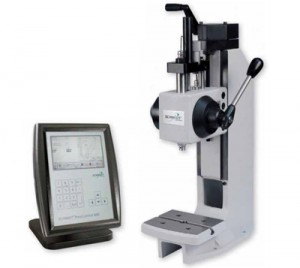

MANUAL PRESS WITH FORCE MONITORING
Press No. 305, 307, 311
Assembly system with patented electronic stroke return lock and with patented, programmable clutch system.
Force ranging from 0.4 kN to 12 kN.
Manual Press with integrated Process- and Electronic Stroke Control provides Long stroke, linear force, and precise adjustment of the press depth via micrometer fine adjustment
Maintenance-free, honed guides and precision-ground rams provide a long service life and non-rotational alignment
Included with the control unit SCHMIDT Press Control 600 for Force & stroke monitoring of the entire pressing operation which allows for extensive error analysis, production data management, process visualization, quality evaluation and static process control

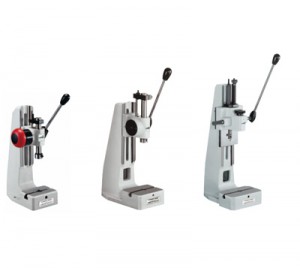

RACK & PINION PRESSES
CONSTANT FORCE OVER THE ENTIRE STROKE
These presses cover a wide range of force from 1.6 kN to 2.5 kN.
Features:
Long stroke with Linear force
Precise adjustment of the press depth via hardened lower stop
Honed bores and ground rams provide a long service life and a precise guidance

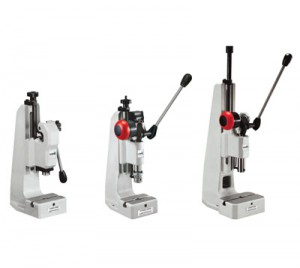

TOGGLE PRESSES
MANUAL TOGGLE PRESS HIGH FORCE AT THE END OF STROKE
Force ranging from 5 kN to 22 kN
SCHMIDT Toggle Presses are available with a round or square ram to avoid torsion
Features-Round ram:
High force at end of stroke
Precise adjustment of the press depth via hardened lower stop
Honed bores and ground rams provide a long service life and a precise guidance Applications
Assembling, riveting, staking, swaging, crimping, marking, numbering, deforming, stamping, cutting and High force over a short press stroke
